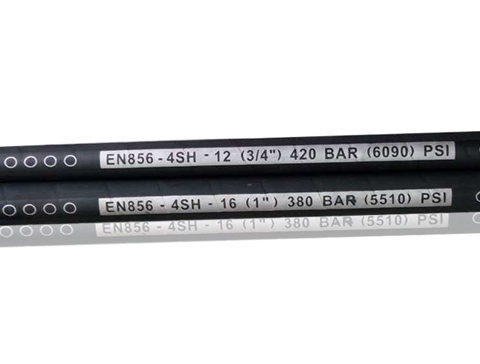

LT583
Application：Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Reinforcement：4 layers of spiraled high tensile steel wire
Cover：weather resistant sythentic rubber
Temperature Range：-40℃~+100℃ (-40°F~+212°F)
Standard： EN856-4SP；GB/T10544-2013
I.D. (mm) |
I.D. (in.) |
I.D. (mm) |
O.D.(mm) |
Max.W.P. |
Min. B.P. |
Min. B.R. |
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
| 10 | 3/8-4 | 9.7 | 10.5 | 24.0 | 70 | 210 | 180 |
| 13 | 1/2-4 | 12.7 | 13.5 | 27.5 | 57 | 172 | 210 |
| 16 | 5/8-4 | 15.7 | 16.6 | 31.0 | 53 | 160 | 260 |
| 19 | 3/4-4 | 18.7 | 19.8 | 35.5 | 46 | 140 | 280 |
| 22 | 7/8-4 | 21.7 | 22.8 | 39.5 | 41 | 124 | 320 |
| 25 | 1-4 | 24.7 | 25.8 | 42.5 | 35 | 112 | 360 |
| 32 | 1 1/4-4 | 31.6 | 32.6 | 50.5 | 32 | 84 | 460 |
| 38 | 1 1/2-4 | 37.7 | 38.8 | 57.5 | 25 | 75 | 560 |
| 45 | 1 3/4-4 | 44.7 | 45.8 | 64.5 | 21 | 64 | 640 |
| 51 | 2-4 | 50.5 | 52.0 | 70.5 | 21 | 64 | 720 |
| 10 | 3/8-6 | 9.7 | 10.5 | 26.0 | 80 | 240 | 180 |
| 13 | 1/2-6 | 12.7 | 13.5 | 30.5 | 72 | 216 | 210 |
| 16 | 5/8-6 | 15.7 | 16.6 | 34.5 | 70 | 204 | 260 |
| 19 | 3/4-6 | 18.7 | 19.8 | 38.5 | 60 | 180 | 280 |
| 22 | 7/8-6 | 21.7 | 22.8 | 42.5 | 53 | 160 | 320 |
| 25 | 1-6 | 24.7 | 25.8 | 45.5 | 50 | 152 | 360 |
| 32 | 1 1/4-6 | 31.6 | 32.6 | 53.5 | 41 | 124 | 460 |
| 38 | 1 1/2-6 | 37.7 | 38.8 | 60.5 | 36 | 108 | 560 |
| 45 | 1 3/4-6 | 44.7 | 45.8 | 67.5 | 32 | 96 | 640 |
| 51 | 2-6 | 50.5 | 52.0 | 74.0 | 32 | 96 | 720 |
