UPE high-pressure multifunctional industrial hose|Chemical Delivery Hose

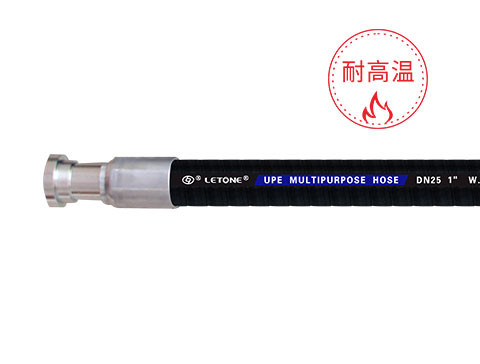

UPE high-pressure multifunctional industrial hose

LT1202H

Product Introduction

Application：This product is widely used in chemical, steel, construction, food, medicine and other fields. It has super wear-resistant and corrosion-resistant product characteristics and high saturation lining, which means that the product is almost free of any substances , Corrosive chemicals, etc.), the product ’s absolutely neutral odor also determines its suitability for the food and beverage industry and the production of pharmaceutical products

Product Introduction
Product Parameters

Reinforcement layer：2-4 layers of steel wire winding

Outer layer：black / red / yellow / blue ozone-resistant, UV-resistant, wear-resistant NV or EPDM rubber

Temperature range：-30 ° C ~ + 100 ° C (-22 ° F ~ + 212 ° F) steam can reach + 135 ° C (within 30 minutes)

Reference standard：EN12115

SIZE	I.D.	W.P.	B.P.
(in.)	(mm)	（MPa）	（MPa）
3/16"-2	5	42	166
1/4"-2	6	40	160
5/16"-2	8	35	140
3/8"-2	9	33	132
1/2"-2	12	28	110
5/8"-2	16	25	100
3/4"-2	19	22	85
1"-2	25	17	65
1 1/4"-2	31	13	50
1 1/2"-2	38	9	36
2"-2	50	8	32
1/2"-4	12	50	166
5/8"-4	16	45	180
3/4"-4	19	42	168
1"-4	25	38	152
1 1/4"-4	31	33	130
1 1/2"-4	38	29	116
2"-4	50	25	100
