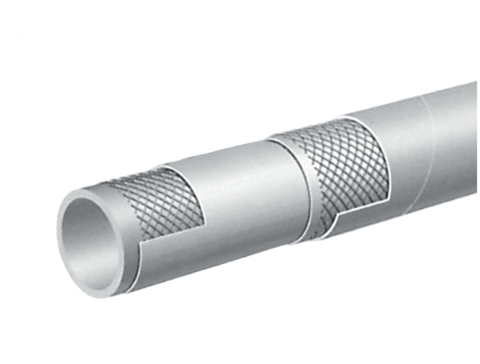

150PSI Food Discharge Hose|Chemical Delivery Hose

150PSI Food Discharge Hose

LT1105

Product Introduction

Applications：Discharge of liquids, fats, greasy foods and alcoholic beverages (maximum of no more than 75 alcohol). The hose can be sterilized with 5% soda. Not recommended for dry abrasives

Product Introduction
Product Parameters

Reinforcement：High tensile textile cords

Inner Tube：White NBR, Meet FDA requirements

Temperature Range：-30℃(-22℉) to +80℃(+176℉)

Working Pressure：Constant Pressure-10 Bar(150PSI)

Specifications
Series	I.D. （in.）	I.D. （mm）	O.D. （in.）	O.D. （mm）	Max.W.P. (psi)	W. （kg/m）
LT1105-150	11/2	38	1.89	48	150	0.89
LT1105-200	2	51	2.48	63	150	1.46
LT1105-300	3	76	3.46	88	150	2.05
