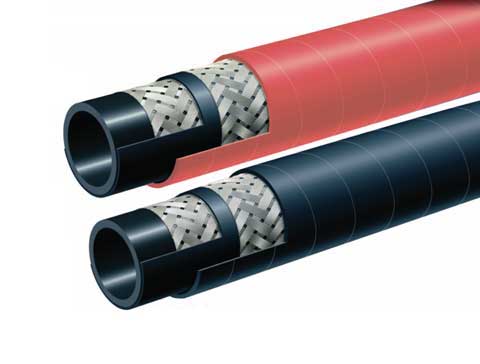

270 PSI Chlorobutyl Braided Steam Hose

LT1005-A/LT1005-B

Product Introduction

Applications：The transfer of saturated and superheated steam up to 270 PSI and max 430° F (+220° C) in shipyards, chemical plants and industrial applications

Product Introduction
Product Parameters

Reinforcement：High tensile steel wire braids

Cover：Red or black EPDM-heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting

Working Pressure：Constant Pressure-18 Bar (270 PSI)

Temperature Range：-40℃（-40°F）to+220℃（+430°F）

Series	I.D. (in.)	I.D. (mm)	O.D. (in.)	O.D. (mm)	Max.W.P. (psi)	Min.B.R.	W. （kg/m）
LT1005A/B-050	1/2	13	0.91	23	270	5	0.43
LT1005A/B-075	3/4	19	1.22	31	270	71/2	0.79
LT1005A/B-100	1	25	1.50	38	270	10	0.92
LT1005A/B-125	11/4	32	1.81	46	270	121/2	1.32
LT1005A/B-150	11/2	38	2.05	52	270	15	1.44
LT1005A/B-200	2	51	2.64	67	270	20	2.14
