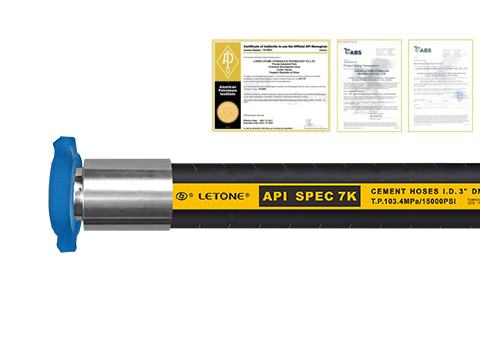

API 7K——Super Abrasion Resistant Acid & Hydraulic Fracturing|Chemical Delivery Hose

API 7K——Super Abrasion Resistant Acid & Hydraulic Fracturing

LT301

Product Introduction

Application：flexible line using for delivery water-based, oil-based, acid-based and foam fracturing fluids under high pressure in acid, sand and hydraulic fracturing works

Product Introduction
Product Parameters

Reinforcement：4 or 6 layers of high tensile super flexible spiral steel wire or steel cable

Cover：abrasion and weather resistant synthetic rubber

Temperature Range：-20°C~+82°C (-4°F〜+179.6°F)

Standard：API Spec. 7K FSL0 | ABS

Connectors：integral union or integral flange

PRESSURE LEVEL	I.D.	O.D.	W.P.	P.P.	Min.B.P.	Min.B.R.
psi	in.	mm	psi	psi	psi	mm
10000 Grade E	2	79	10000	15000	22500	1000
	2 1/2	98	10000	15000	22500	1000
	3	117	10000	15000	22500	1400
	3 1/2	137	10000	15000	22500	1400
	4	156	10000	15000	22500	1600
15000 Grade E	2	98	15000	22500	33750	1200
15000 Grade E	3	129	15000	22500	33750	1500
