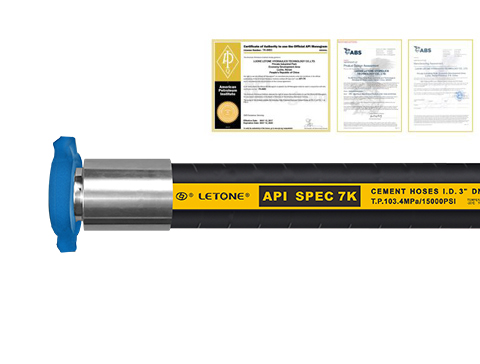

LT301
Application:flexible connection in the cementing manifold for delivery water-based and oil-based cement slurries at high pressure
Reinforcement:4 or 6 layers of high tensile super flexible spiral steel wire orsteel cable
Cover:abrasion and weather resistant synthetic rubber
Temperature range:-20°C~+82°C (-4°F~+179.6°F) -55°C〜+150°C (-67°F〜+302°F)
Standard:API Spec. 7K FSL0 | ABS
Connectors:integral union or integral flange
PRESSURE LEVEL | I.D. | O.D. | W.P. | P.P. | Min.B.P. | Min.B.R. |
psi | in. | mm | psi | psi | psi | mm |
10000 Grade E |
2 | 79 | 10000 | 15000 | 22500 | 1000 |
2 1/2 | 98 | 10000 | 15000 | 22500 | 1000 | |
3 | 117 | 10000 | 15000 | 22500 | 1400 | |
3 1/2 | 137 | 10000 | 15000 | 22500 | 1400 | |
4 | 156 | 10000 | 15000 | 22500 | 1600 | |
15000 Grade E |
2 | 98 | 15000 | 22500 | 33750 | 1200 |
3 | 129 | 15000 | 22500 | 33750 | 1500 |
